17″ FN Wheels / Konig Six Shooter – complete set of four wheels
Bolt pattern (PCD): 5x150mm
Center bore: 110.2mm (Toyota hub centric)
Stud opening: 16.2mm diameter (accepts extended thread aka “ET” lug nuts for maximum stud engagement on short, OEM Toyota wheel studs)
Load rating: 2,500lbs+ per wheel with up to a 37″ tire diameter
Wheel weight: 26.7lbs (approximate)
Manufacturing details: Flow formed from high purity A356-T6 aluminum alloy.
Certification: DOT, JWL-T, VIA, and SAE J-2530 approved (SAE J-2530 is an extremely stringent, voluntary testing standard that is stricter than DOT, JWL-T, and other governmental testing standards).
Center cap: Plain, color matched, flat, snap-in center cap included (FNW center cap emblem available upon request at no charge).

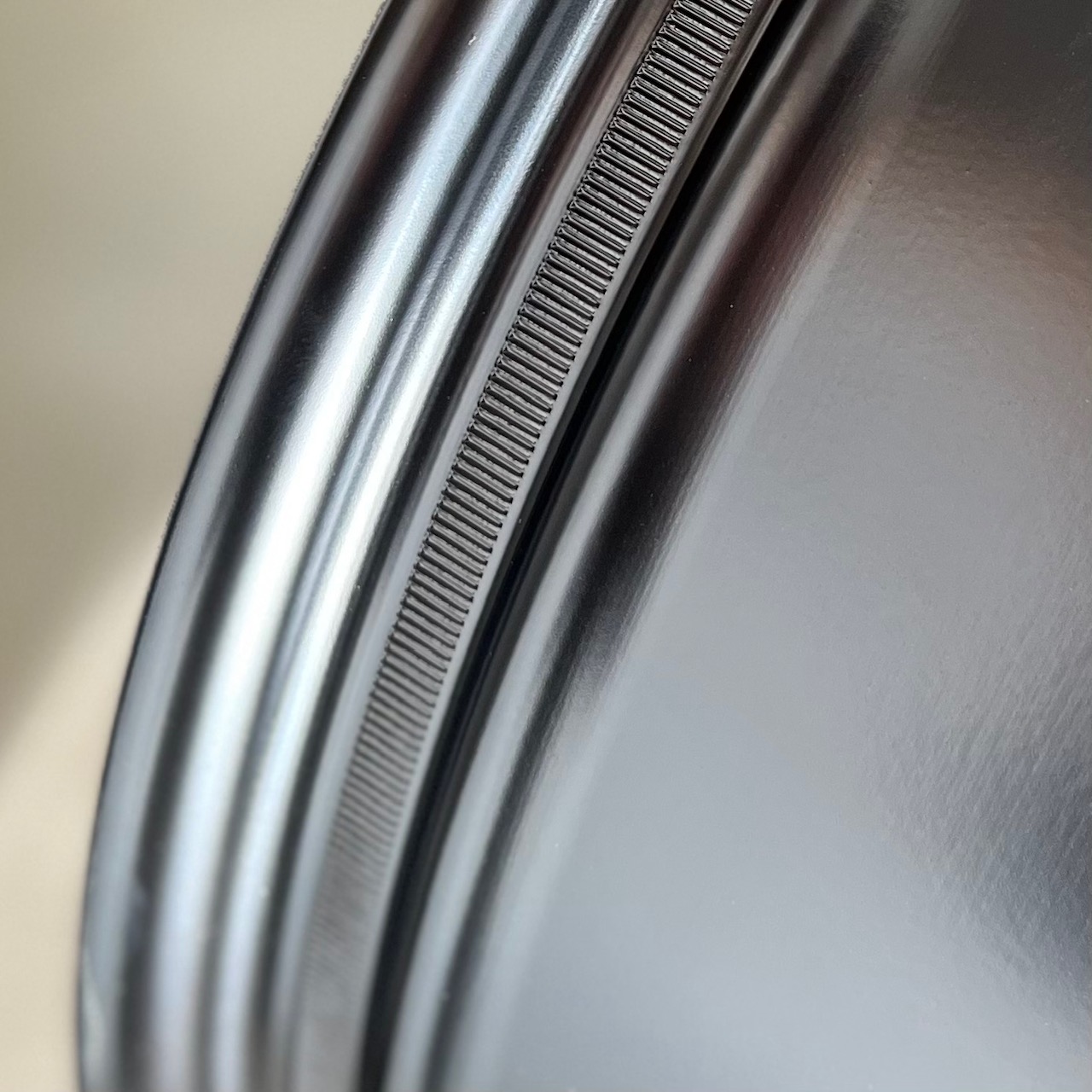

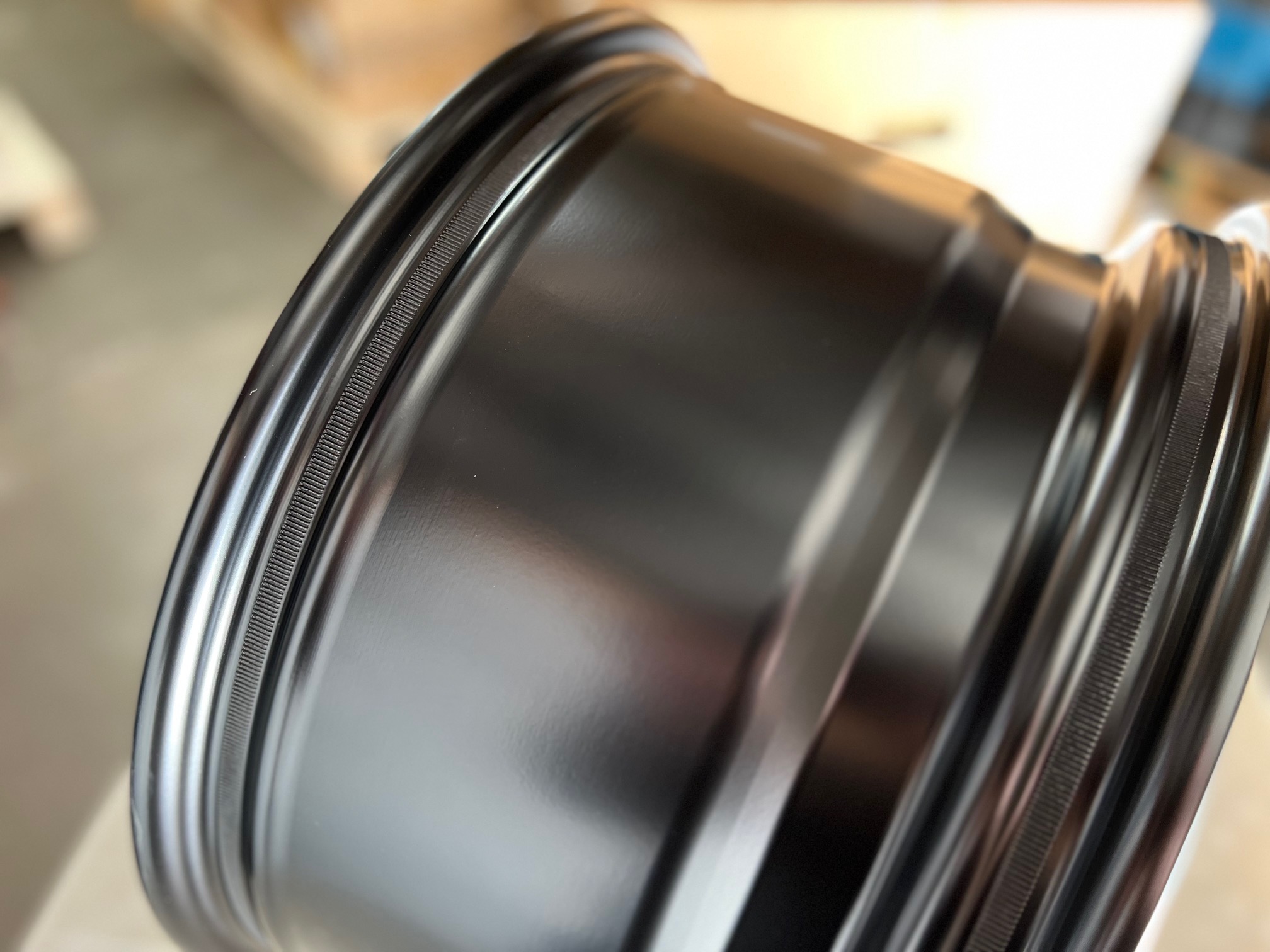

Additional features: Knurled bead seats for enhanced bead retention at low psi. Reinforced inner and outer lips/flanges for increased strength and rigidity. Special high strength / high clearance barrel design for maximum brake clearance.
- Matte Black – In-stock now!
- Additional colors / finishes expected to be released in late 2023/early 2024.
-The 17×9″ +25mm offset 5×150 PCD FN Wheels / Konig Six Shooter (PN FN6S7955025) is manufactured specifically to fit the 2008-2021 Lexus LX570, 2008-2021 Toyota Landcruiser 200, 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia. If you are looking for a set of Six Shooters to fit your 2022+ Tundra or 2023+ Sequoia please click here. Please contact us prior to ordering if you are looking for a set of 5×150 wheels to fit a different vehicle, including the Landcruiser 100 / LX470.
– Many aftermarket wheel manufacturers offer their 17″ wheels with offsets that are too low for the Landcruiser 200, LX570, Sequoia, and Tundra in order to achieve the necessary brake clearance, or they offer 17″ wheels which cannot be dynamically balanced due to the position of the wheel weights relative to the wheel’s drop center and/or barrel shape. The 17″ Six Shooter has excellent brake clearance and an offset which has been tailored to fit all vehicles built on the Landcruiser 200 / 2nd generation Sequoia/Tundra platform. We developed a special high clearance / high strength barrel design to fit over the large OEM brakes that come standard on these vehicles. We recommend that your installer uses any of the commonly available, low profile, stick-on wheel weights in 5 gram or .25 oz segments to balance your Six Shooters. The 17″ Six Shooter has ample barrel clearance to be dynamically (dual plane) balanced without any brake caliper interference so long as low profile weights are used to balance the wheels.
-These Six Shooter wheels feature a robust load rating of 2,500lbs+ per wheel with a maximum tire diameter of 37″ as tested to the stringent SAE J-2530 standard all the while maintaining a relatively light wheel weight of approximately 26.7lbs per wheel. This feat has been made possible through the use of high purity A356-T6 aluminum alloy, an advanced flow form manufacturing technique, extensive R&D including finite element analysis and physical testing. Larger tire diameters contribute more stress and load onto the rim. Accessories add weight to the vehicle, which also increases the stress and load that the wheels are required to bear. No sacrifices or compromises were made when it came to ensuring the strength of this wheel. We took into consideration our customers who add bed racks, roof top tents, steel bumpers, and who wish to install 37″ diameter tires, and we engineered the Six Shooter accordingly. We then verified the load rating by testing to the industry’s strictest testing standard – SAE J2530. We are confident that you will not find a better fitting or higher quality 17″ wheel for these vehicles at anywhere near this price point.
-Small diameter lug nuts with a 60 degree conical taper are required for installation. Extended thread (ET) lug nuts are highly recommended. Black or chrome lug nuts are available via our website or when ordering by phone or in person. Please click here for black lug nuts or click here for chrome lug nuts which are compatible with these wheels and all Toyota vehicles equipped with 5×150 bolt pattern hubs.
-PRICE INCLUDES A COMPLETE SET OF FOUR (4) WHEELS AND SHIPPING VIA FEDEX GROUND/HOME DELIVERY WITHIN THE CONTIGUOUS 48 US STATES. ALL WHEELS ARE PACKAGED EXTREMELY WELL WITH FOAM, CORRUGATED FACE PROTECTORS, ADDITIONAL EDGE PROTECTORS, DOUBLE BOXED AND THEN SHIPPED FULLY INSURED WITH SIGNATURE CONFIRMATION. WE DO NOT CUT CORNERS ON SHIPPING. WE BELIEVE THAT HIGH QUALITY WHEELS SHOULD BE SHIPPED IN A HIGH QUALITY MANNER.
-Please contact us prior to ordering if you require shipping outside of the contiguous 48 states, if you require a different shipping method (other than FedEx Ground/Home delivery), or if you’re looking for a single wheel, set of five wheels, etc. If you’d like to order by phone or if you have any trouble ordering from our website please contact us. We are always happy to help accommodate any requests, and we’re available to help by calling (951)735-1100 or emailing [email protected].
-Sales tax is only applicable to California residents. Tax will be shown for all customers, but it will only be applied to California orders.
-This is the latest, updated, and re-released version of the 17×9″ +25mm 5×150 Six Shooter flow formed (released June 2023). This version is slightly different from the previous version which was discontinued in 2018.
