17″ FN Wheels Five Star : 17×9″ +25mm 6×139.7 – Set of Four Wheels 2022+ TUNDRA / 2023+ SEQUOIA EDITION

$1,199.00

SKU: N/A Categories: ,

Description

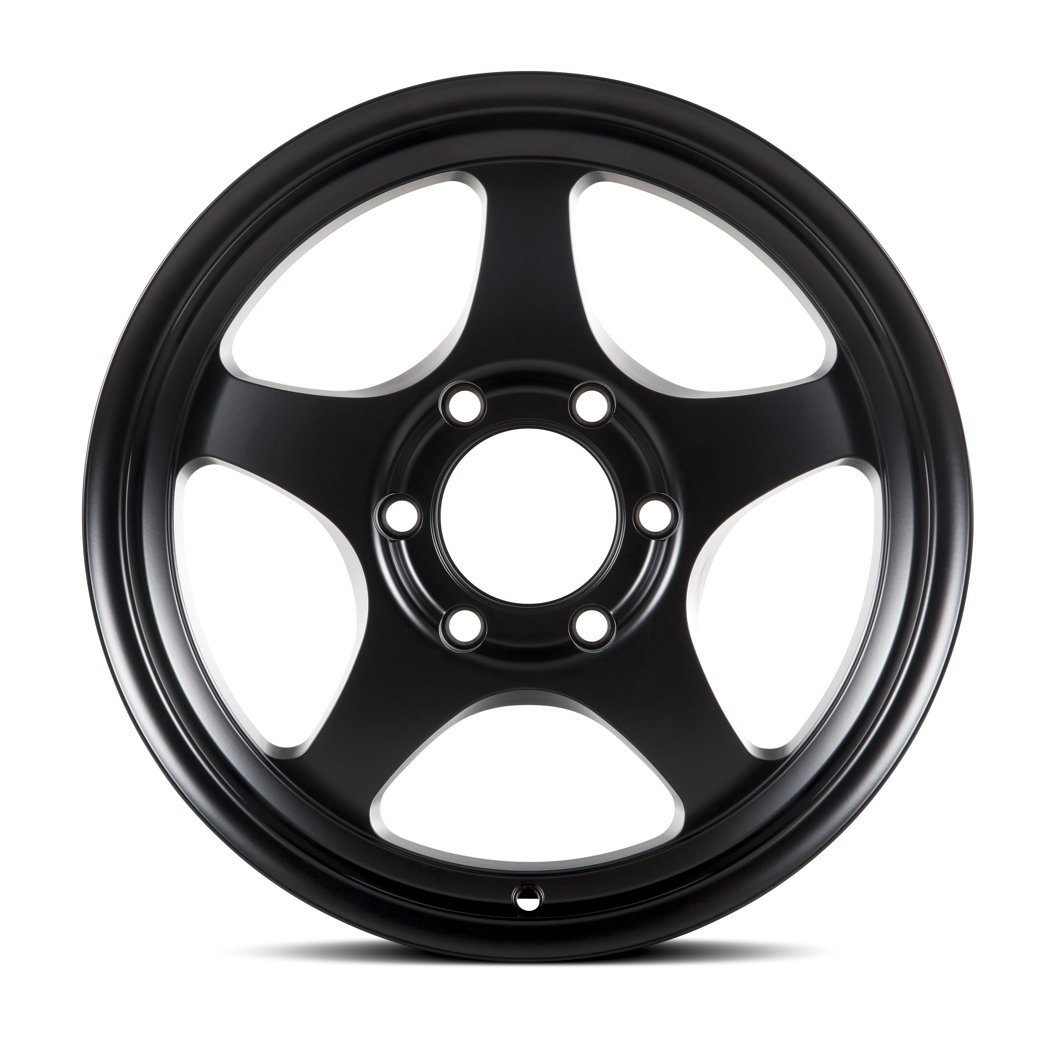

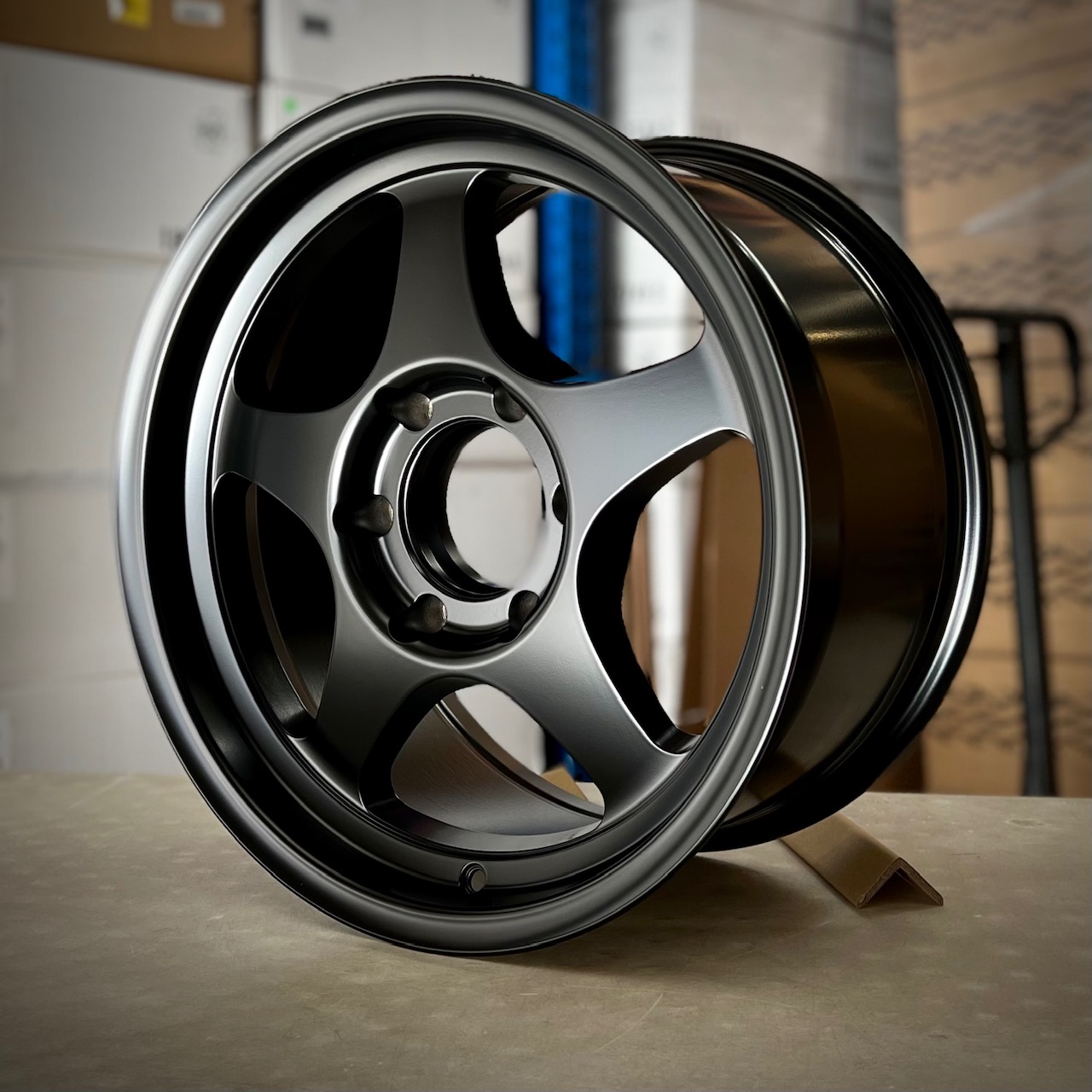

17″ FN Wheels Five Star – complete set of four wheels

Diameter: 17″
Width: 9″
Offset: +25mm
Backspacing: 6″
Bolt pattern (PCD): 6×139.7mm
Center bore: 95.2mm (2022+ Toyota Tundra / 2023+ Toyota Sequoia hub centric)
Stud opening: 16.2mm diameter (accepts extended thread aka “ET” lug nuts for maximum stud engagement on short, OEM Toyota wheel studs)
Load rating: 2,500lbs+ per wheel with up to a 37″ tire diameter
Wheel weight: 24lbs (approximate)
Manufacturing details: Flow formed from high purity A356-T6 aluminum alloy.
Certification: DOT, JWL-T, VIA, and SAE J-2530 approved (SAE J-2530 is an extremely stringent, voluntary testing standard that is stricter than DOT, JWL-T, and other governmental testing standards).
Center cap: Included.
Additional features: Knurled bead seats for enhanced bead retention at low psi. Reinforced inner and outer lips/flanges for increased strength and rigidity. Special high strength / high clearance barrel design for maximum brake clearance.

Colors Available:

  • Matte Black – Very limited stock on hand. Please contact us at (951)735-1100 (call), (714)390-9387 (call or text) or [email protected] (e-mail) to inquire about current stock. The wheels will be marked out of stock online in the meantime while we have limited stock on hand.
  • Additional colors / finishes coming soon!

Additional information:

-The 17×9″ +25mm offset 6×139.7 PCD with 95.2mm center bore FN Wheels Five Star (PN FN557963925) is manufactured specifically to fit the 2022+ Toyota Tundra and 2023+ Toyota Sequoia. If you are looking for a 17″ Five Star wheel to fit a different 6×139.7 bolt pattern Toyota please click here , or if you are looking for a wheel to fit your 2008-2021 Landcruiser/LX570, 2007-2021 Tundra or 2008-2022 Sequoia with the 5×150 bolt pattern please click here.

-This version of the Five Star has been manufactured with a 95.2mm center bore for a hub centric fit on the 2022+ Tundra and 2023+ Sequoia. You will not need to use any adapters or hub centric rings when installing these wheels on your 3rd gen Tundra or Sequoia.

– Many aftermarket wheel manufacturers offer their 17″ wheels in offsets which are too low for the 2022+ Tundra and 2023+ Sequoia so that they can achieve the necessary brake clearance to fit over the large brakes with which these vehicles come equipped, and/or they offer 17″ wheels which cannot be dynamically balanced due to the position of the wheel weights relative to the wheel’s drop center or barrel shape. The 17″ FN Wheels Five Star provides excellent clearance courtesy of a proprietary barrel design coupled with an offset that is tailored to fit the 3rd generation Sequoia/Tundra. We recommend that your installer uses any of the commonly available, low profile, stick-on wheel weights in 5 gram or .25 oz segments to balance your FN Five Stars. The 17″ Five Star has ample barrel clearance to be dynamically (dual plane) balanced without any brake caliper interference so long as low profile weights are used to balance the wheels. This barrel design is an important feature since a proper wheel/tire balance is important to ensure a smooth ride and consistent tire wear.

-These FN Wheels Five Star wheels feature a robust load rating of 2,500lbs+ per wheel with a maximum tire diameter of 37″ as tested to the stringent SAE J-2530 standard all the while maintaining a relatively light wheel weight of approximately 24lbs per wheel. This feat has been made possible through the use of high purity A356-T6 aluminum alloy, an advanced flow form manufacturing technique, extensive R&D including finite element analysis and physical testing. We are confident that you will not find a better fitting or higher quality 17″ wheel for these vehicles at anywhere near this price point.

-Small diameter lug nuts with a 60 degree conical taper are required for installation. Extended thread (ET) lug nuts are highly recommended. Black or chrome lug nuts are available via our website or when ordering by phone or in person. Please click here for black lug nuts or click here for chrome lug nuts which are compatible with these wheels and all Toyota vehicles equipped with 6×139.7 bolt pattern hubs.

-PRICE INCLUDES A COMPLETE SET OF FOUR (4) WHEELS AND SHIPPING VIA FEDEX GROUND/HOME DELIVERY WITHIN THE CONTIGUOUS 48 US STATES. ALL WHEELS ARE PACKAGED EXTREMELY WELL WITH FOAM, CORRUGATED FACE PROTECTORS, ADDITIONAL EDGE PROTECTORS, DOUBLE BOXED AND THEN SHIPPED FULLY INSURED WITH SIGNATURE CONFIRMATION. WE DO NOT CUT CORNERS ON SHIPPING. WE BELIEVE THAT HIGH QUALITY WHEELS SHOULD BE SHIPPED IN A HIGH QUALITY MANNER.

-Please contact us prior to ordering if you require shipping outside of the contiguous 48 states, if you require a different shipping method (other than FedEx Ground/Home delivery), or if you’re looking for a single wheel, set of five wheels, etc. If you’d like to order by phone or if you have any trouble ordering from our website please contact us. We are always happy to help accommodate any requests, and we’re available to help by calling (951)735-1100 or emailing [email protected].

-Sales tax is only applicable to California residents. Tax will be shown for all customers, but it will only be applied to California orders.
